setting up liposhield in sv27

Collapse
X

  • Time
  • Show
Clear All
new posts
  • 1truckerdan
    Senior Member
    • Aug 2011
    • 329

    #16
    If it is wired the way it looks it will still work .... but the lipo shield will only monitor the middle 2 cells (cells 2 and 3) of a 2s 2p setup.
    Daniel
    When you know it all.......you never will learn anything new

    Comment

    • leeuk
      Member
      • Jul 2011
      • 56

      #17
      Originally posted by 1truckerdan
      If it is wired the way it looks it will still work .... but the lipo shield will only monitor the middle 2 cells (cells 2 and 3) of a 2s 2p setup.
      Daniel
      2p set up?
      UK newbie to FE boats....go easy on me

      Comment

      • leeuk
        Member
        • Jul 2011
        • 56

        #18
        I dont see how it can only monitor cells 2&3??
        UK newbie to FE boats....go easy on me

        Comment

        • 1truckerdan
          Senior Member
          • Aug 2011
          • 329

          #19
          Let me try to make it as simple as I can as it can get very confusing...
          The (-)wire of the lipo shield needs to be hooked to the (-) side of the first pack in the series ......
          and the (+) side of the lipo shield needs to be hooked up to the (+) side of the LAST pack in the series to monitor ALL the cells.
          Here is how it should be wired
          2s2p set up.JPG
          I hope this helps
          Daniel
          When you know it all.......you never will learn anything new

          Comment

          • leeuk
            Member
            • Jul 2011
            • 56

            #20
            Ok,thats how ive got it havent i?

            If not,how do i know which lipo is first and last?
            Im guessing the theory is to have the liposhield running with the circuit
            UK newbie to FE boats....go easy on me

            Comment

            • 1truckerdan
              Senior Member
              • Aug 2011
              • 329

              #21
              The pack connected to the (-) black wire that is coming from the ESC is the 1st pack
              ....the one connected to the (+) red wire that is coming from the ESC is the 2nd pack
              The black wire that goes between the two deans plugs just connects the 2 packs in series
              Daniel
              When you know it all.......you never will learn anything new

              Comment

              • leeuk
                Member
                • Jul 2011
                • 56

                #22
                after closer inspection,ive noticed the diagram uve drawn is exactly how my set is,the negative (-) on the lipo shield would connect to the (-) on the esc and lipo pin (1st pack) and same for the positives (+) (2nd pack) the positive pins on the liposhield match with the same pins on the esc and lipo



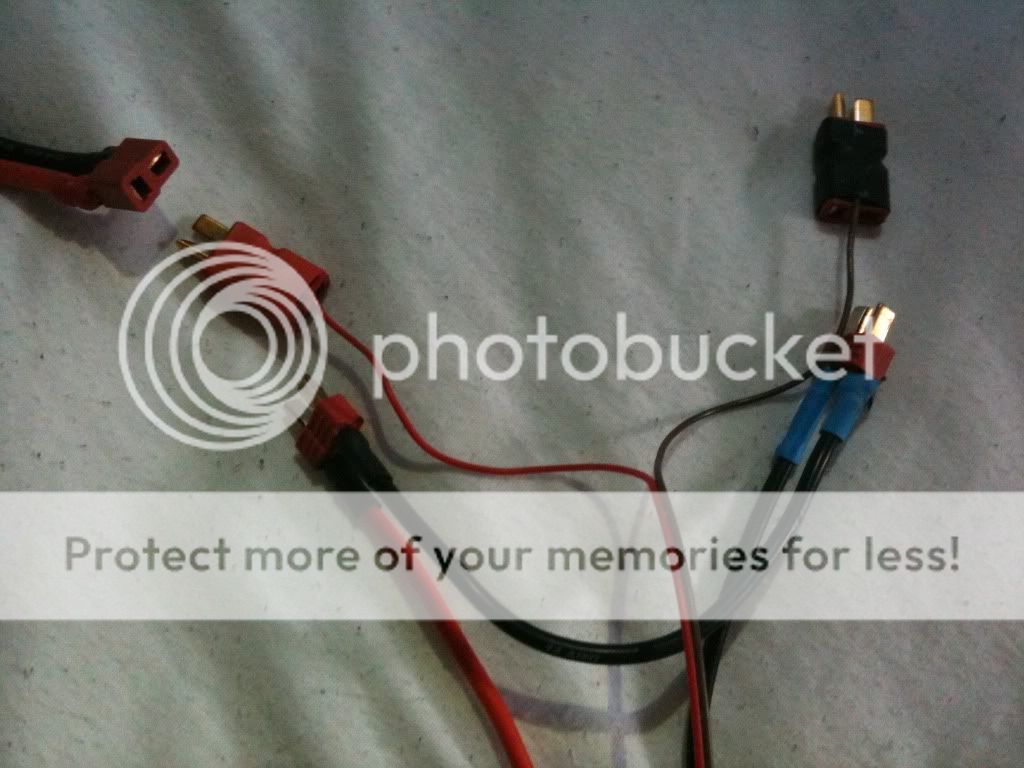

                a little pic...

                UK newbie to FE boats....go easy on me

                Comment

                • 1truckerdan
                  Senior Member
                  • Aug 2011
                  • 329

                  #23
                  Kool beans..... I am sorry to have confused you earlier
                  I'm glad I could help.
                  Always remember...the only dumb question is the one not asked
                  Daniel
                  When you know it all.......you never will learn anything new

                  Comment

                  • leeuk
                    Member
                    • Jul 2011
                    • 56

                    #24
                    no buddy its fine,
                    i only got confused as to what was the "correct" way to connect it up and a "better" way to connect it up

                    appreciate the help tho

                    gona try get it running for tmw but got a few new bits to install like

                    servo & rx tray
                    velcro strips for lipos
                    new hatch lock
                    new aerial mount

                    a few little bits,then i need to look at getting it set up correctly..trim tabs,strut and CoG
                    UK newbie to FE boats....go easy on me

                    Comment

                    • Duster19
                      Member
                      • Sep 2011
                      • 64

                      #25
                      leeuk,

                      Could you update us on how well the Lipo shield is working? Would you go this route again or just invest in a new ESC? What Lipo packs are you running and how are your temps and run times?

                      Thanks,

                      Dave
