    revolt 30 leopard build..

    So I had a revolt 30 and got bored with the speed so I decided to build one of mine up, and leave the other one stock.

    Leopard 3674 and 180a speedo.


    Dual water pickup installed

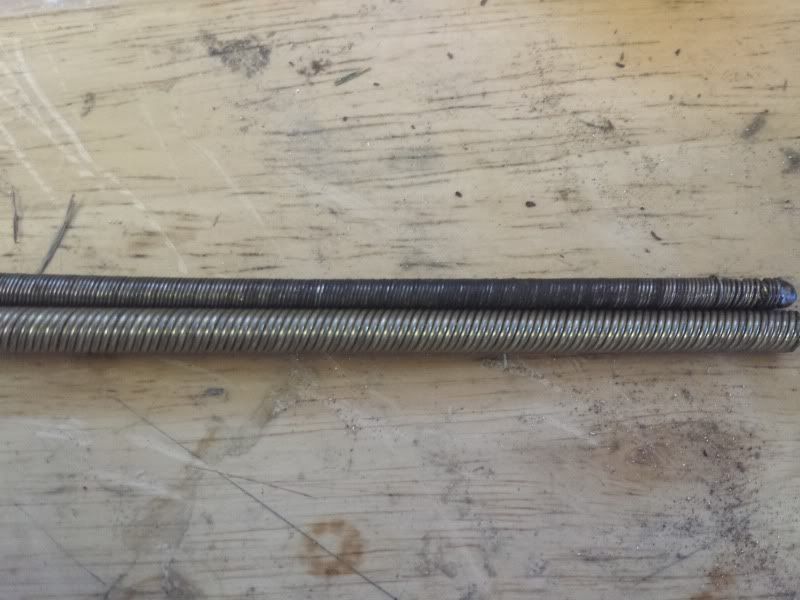

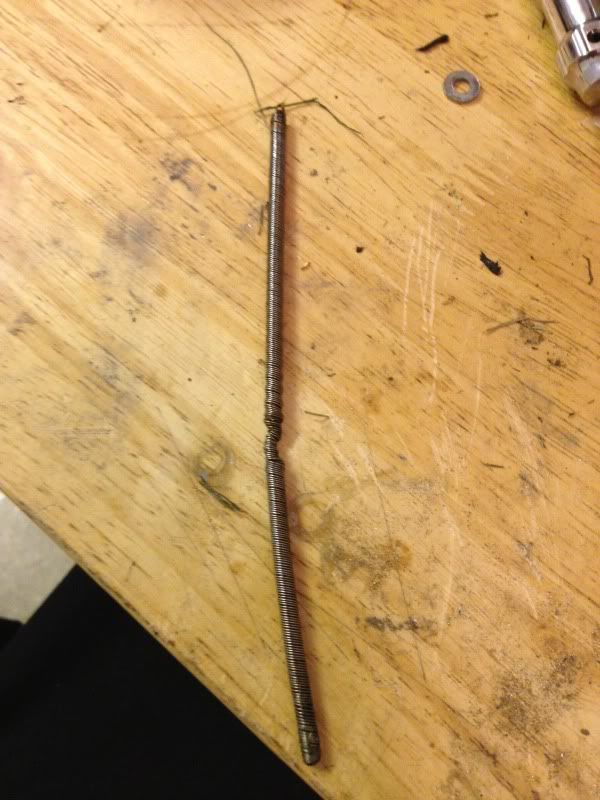

    So I take the boat out. I ripped for about a minute.. than lost forward power... boat drifted back and found out the flex shaft broke at the prop shaft and submarined my fresh m445. Removed the remaining part of flex, and found this..



    So I hopped on ose and ordered an hd flex cable for a proboat Impulse. Its a .187 flex with a 3/16" prop shaft. Also came with attached drive dog, and the fancy prop nuts. I had to cut the flex approximately 1/2" to match the stock length and removed the teflon liner.

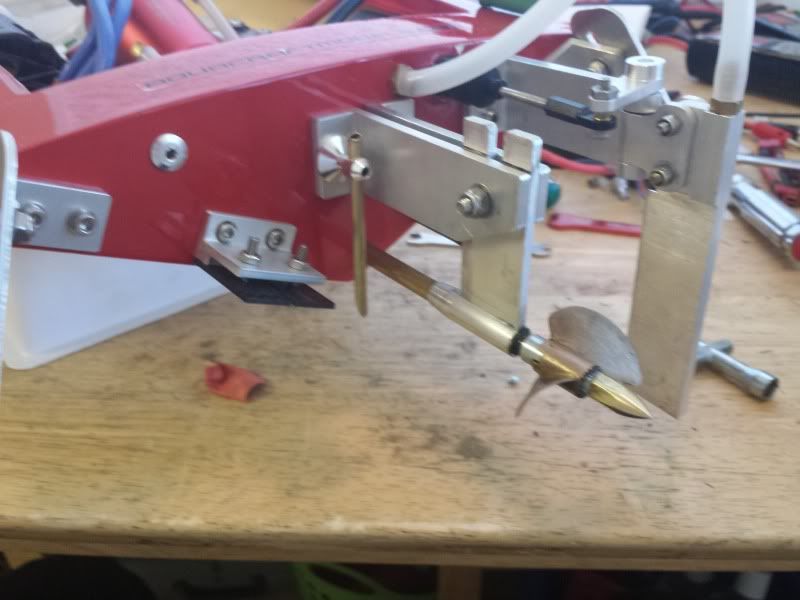

    And heres a shot with the flex installed, with an x445 prop.

  • Cinnabun
    Senior Member
    • Jun 2013
    • 433

    #2
    More pics with the water cooling is finished.

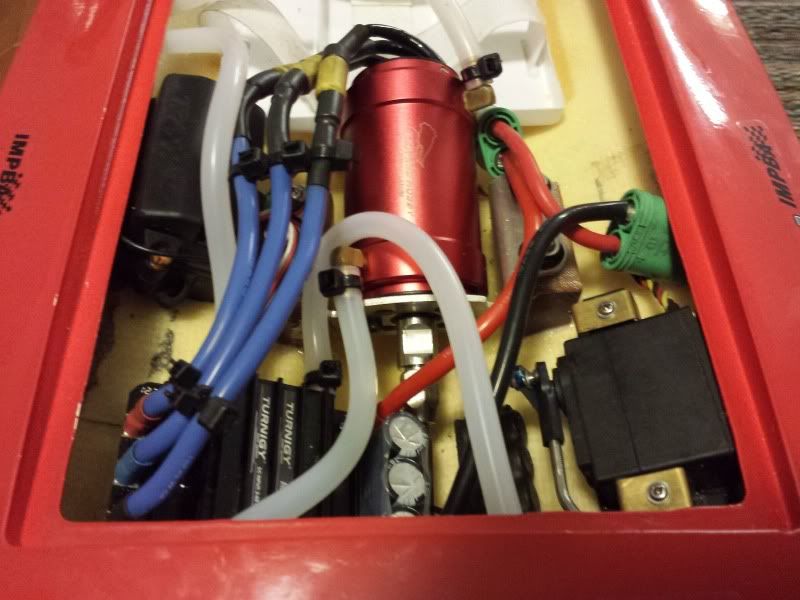

    Interior shot

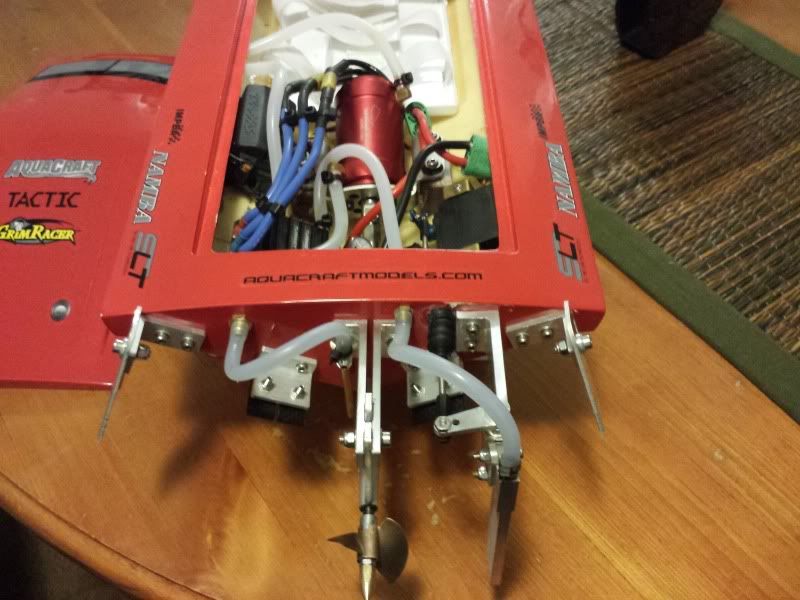

    shot of the rear

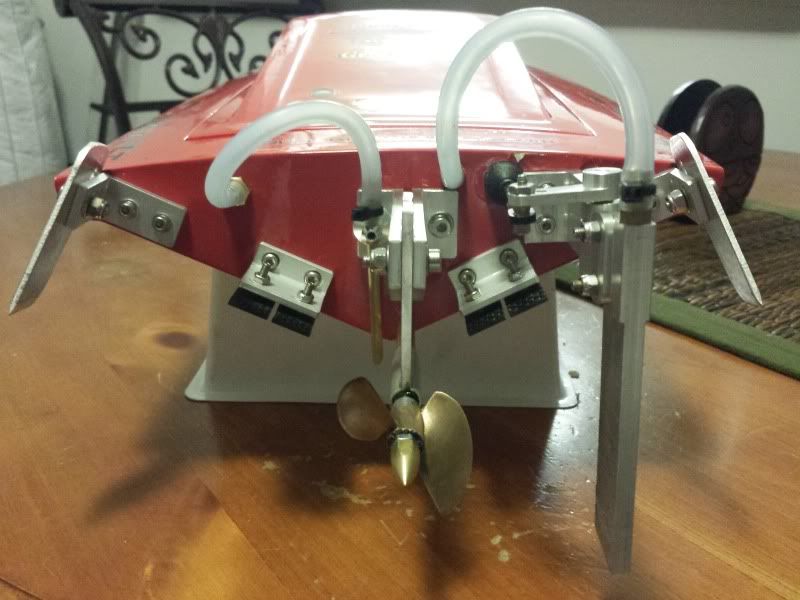

    and a shot of the water outlets


    Next plans are to line the inside with carbon fiber, and put a carbon fiber battery tray in

    Comment

    • tlandauer
      Fast Electric Addict!
      • Apr 2011
      • 5666

      #3
      Very nice! I like the dual water outlet! Question: How did you mount the transom pickup? did you use the existing hole on the strut bracket? If so, how can the transom pickup do double duty to hold the bracket tight against the transom? Just want to learn!
      Too many boats, not enough time...

      Comment

      • Cinnabun
        Senior Member
        • Jun 2013
        • 433

        #4
        The transom pickup has a bolt from the inside and uses the factory strut mount bolt hole. The stock strut mount bolts were a larger diameter, so I was able to remove the stock bolt and put the pickup bolt through the metal support on the transom and it clamps the strut. Backwards from how the bolt would go from the factory, the head of the bolt is on the inside.

        I got the idea from dirtsnowrider. His revolt was a huge inspiration for my dual water cooling project.

        Comment

        • tlandauer
          Fast Electric Addict!
          • Apr 2011
          • 5666

          #5
          Thanks, Looks real nice, post some video if you have a chance!
          happy Boating!
          Too many boats, not enough time...

          Comment

          • Cinnabun
            Senior Member
            • Jun 2013
            • 433

            #6
            I will try to get video asap. It should run pretty good.

            The existing outlet hole was used for the second inlet, also. The motor is connected to the transom pickup because the flow from the rudder is not constant I feel. When making a left turn, I find it hard to believe that the rudder is still picking up water. And I believe my motor will be the main source of heat in my setup. If this proves incorrect ill switch the flow so the esc gets the transom pickup.

            Comment

            • Mike Caruso
              Senior Member
              • May 2012
              • 940

              #7
              I think (not sure) the ESC needs the better cooling than the motor and the way it looks is the rudder is cooling the ESC. Caution I have run into a heat increase problem when I add left trim to the rudder. When I am spinning a big prop trying to make the boat run straight without shimming the strut. It reduces the water to the rudder pickup hole and does the same for big left hand turns. I would simply switch your hoses an cool the ESC from the transom water pickup which is a nice idea BTW. Since I have moved my water pickup to the bottom of the rudder.
              My 2 cents
              Do It Like You Mean It .....or Don't Bother

              Comment

              • Cinnabun
                Senior Member
                • Jun 2013
                • 433

                #8
                I was thinking the motor would produce the most heat. Ill run it and check temps, than adjust lines as needed.

                Im looking for 50mph with the x445. I will be happy with that.

                Comment

                • tlandauer
                  Fast Electric Addict!
                  • Apr 2011
                  • 5666

                  #9
                  I am not familiar with this boat, did you enlarge the pick up hole on the rudder, I seem to recall that was one of the notice AC put out. I have a Pursuit with only a rudder picket, seems to work.
                  Your first run take a very close look at the temp and you should be good.
                  Too many boats, not enough time...

                  Comment

                  • Cinnabun
                    Senior Member
                    • Jun 2013
                    • 433

                    #10
                    Mine is a gen 2 with the revised pickup. That notice was for gen 1 revolts if I remember correctly. Im really not a fan of the revolts rudder pickup.. it seems to me if its running dry enough the rudder pickup would be at the water surface

                    Comment

                    • tlandauer
                      Fast Electric Addict!
                      • Apr 2011
                      • 5666

                      #11
                      Well, with the dual pickup you have either choice, I think it's going to be great! This is a funny hobby, most of my boats are in a "down time" right now, I got rid of the bounces on my MG, but I had to re-bend the stuffing tube for a more negative angle, haven't had time to try that out yet. Couple of other boats needs some improvement as I am learning more, I want to do it the right way. So I am flying my heli to get the rush. lol...
                      Too many boats, not enough time...

                      Comment

                      • Cinnabun
                        Senior Member
                        • Jun 2013
                        • 433

                        #12
                        Lol.

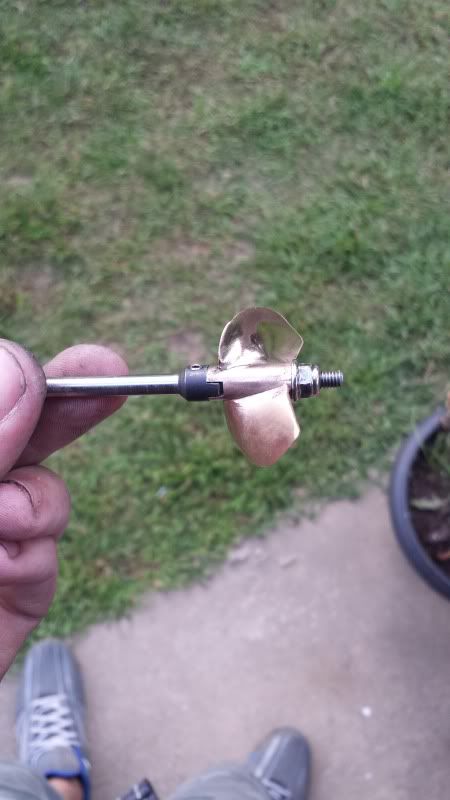

                        Today I worked the m545 and got halfway through polishing it. Thinned it quite a bit, sharpened and balanced it.

                        Comment

                        • tlandauer
                          Fast Electric Addict!
                          • Apr 2011
                          • 5666

                          #13
                          Originally posted by Cinnabun
                          Lol.

                          Today I worked the m545 and got halfway through polishing it. Thinned it quite a bit, sharpened and balanced it.

                          that is still beyond me. may be one day...
                          Too many boats, not enough time...

                          Comment

                          • Cinnabun
                            Senior Member
                            • Jun 2013
                            • 433

                            #14
                            Its not hard once you understand what youre doing.. I screwed up about 5 props trying different ways to cut them. I can do a 2 blade prop in about 2 hours by hand. The m545 took about 3 hours to get where it is, the prop was very thick. I have about a half hour of polishing left and itll be ready to run

                            Comment

                            • Mike Caruso
                              Senior Member
                              • May 2012
                              • 940

                              #15
                              That's the only prop that does not run good on my all stock Revolt. I did like you thinned as it was tug boat prop. Put it on my friends AQ27VR with Revolt ESC and it runs mid 40's and very stable smooth. The Revolt hull is longer only on the front and has the motor in the rear and the 27VR is the same hull just shorter and has the motor more forward that the Revolt. But it loves the M-545 and the M-645 LOL Drive cable length Revolt 8.00", 27VR is 12.00" motor is 4.00" farther forward.
