HPR 135 Bulletproof Build

[Chrisg81983]

Ok guys .finally got around to starting a build thread. I recently bought a 135 bulletproof from Manuel and have been working on it a little each day.

The setup will be

Motors : lehner 3040 / 6 ran mainly in wye configuration.

Esc : schulze 40.161.wk

Carbon parts : all carbon parts other than lipo trays are being made by kent / nata2run here on ose

Hardware : hpr rudder, drives

I also have a full kevlat hatch being made for the hull.

[iridebikes247]

What kinda speeds you after and don't say only 90 lol.

[Chrisg81983]

110 - 125

[Chrisg81983]

So here are some pics of the hull and some shots of the hpr hardware

[Jason4636]

Man thats a nice hull!!! I'll be following you build Chris. I think my next build will be the HPR 135. But the boss says I have to wait till after I buy her a house. So hopefully I'll start on mine by the end of summer. Are you having Kent make anything special?

[Chrisg81983]

I installed the rudder first. To do this I actually made templates by using my daughters stamp and ink pad set. It sounds strange but worked amazingly well. After I stamped the rudder on to a pice of paper I cut out the exact image. I then applied a light misting of 3m spray adhesive and stuck it wherr I wanted it to be.

[Chrisg81983]

Thanks jason the hull is truely awesome man. Yes kent is making me some sick cf parts they are all cut and he should be shipping today. I am gettinh to the pics in a few minutes.

[Jason4636]

That stamp trick works good, I used that trick when I did my mono hardware placement.

[Chrisg81983]

Next I installed the drives. To do this I double sided taped them in place and just drilled. I then backed it with a pice of cf plate. I did this just to make a flat surface for the nuts and bolts to sit on as the hull did not need any strength in that area.

[Chrisg81983]

Jason the stamp trick worked very good and I will keep using that method from now on. funny I was watching my daughter play with her stamp set and I got an idea so basically I stole her toy right out from under her pretty mean rite lol but I did have her help

[Chrisg81983]

Today I just finished the rudder hydraulics here are a few pics as well

[Chrisg81983]

Now the part that kent did for me and I must say he is a very artistic and talented person. I couldn't be happier with the final product.

[Jason4636]

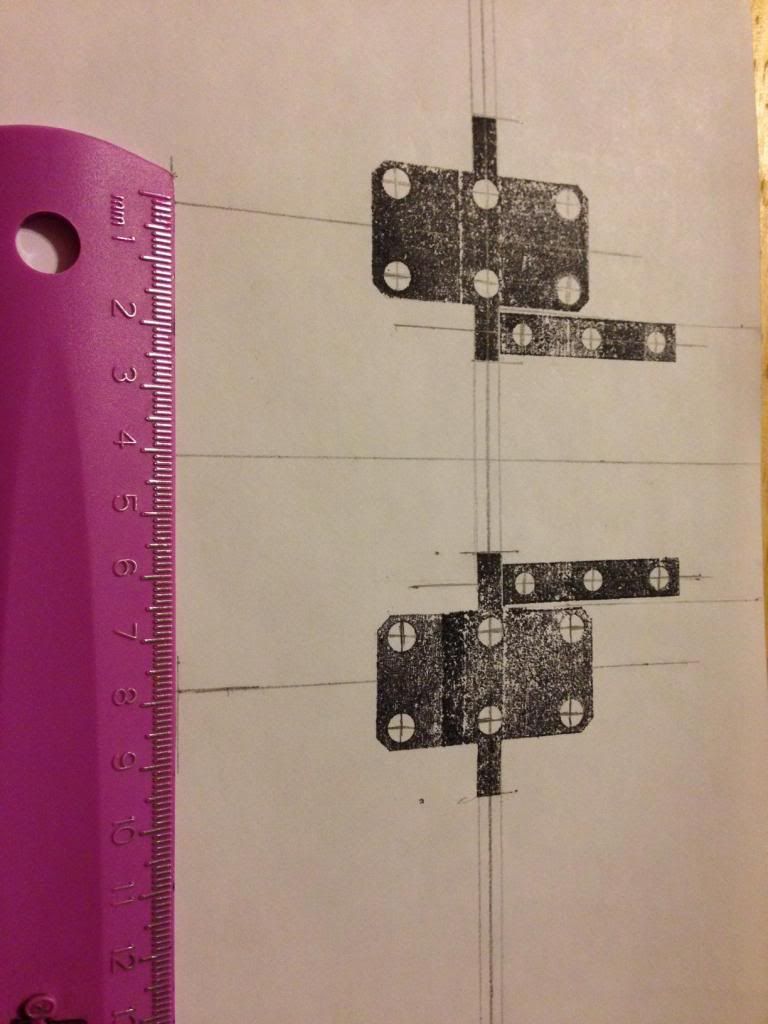

Chris just a helpful tip for when you use the ink pad. When your stamping the paper with your part. Put a folded paper towel under the part, that way you get a very clean stamp. Your pattern stamp came out nice. I know when I stamped my larger parts, I had to use the paper towel to get a good stamp.

What I wrote on Keith's site.
I used and ink pad to make the part like an ink stamp. Had to place a folded paper towel under the sheet of paper. So it had a little give to push the paper nicely against the part. I thought it way an OK idea, just thought I would share it. And yes I know my ruler is hot pink. Had to use the daughters ruler

[Chrisg81983]

Heres two more closeup shots

[Chrisg81983]

Jason I know exactly what u r saying I had to do the same thing with the towel, And yes I love the ruler it matches my pink and purple ink.
