    f/s black impulse 31

    I don't really want to do this but if I want to finish my fantasm any time soon, then I have to. I got this awesome little boat from a member on here in on trade. I went through it and made a bunch of nice improvements to it and upgrades. It has some minor spider webs in the paint which is normal for these boats. There's no damage to it. Where the canopy "tit" went into the hull, it cracked on top, upset the sticker. That hole has been filled and better hatch retention system installed.

    Here's what I've done:
    -added additional two part kintec foam in the front
    -buffed it out
    -reinforced the motor mount
    -added hatch locks to the canopy. Reinforced the underside of the canopy rails with carbon fiber. Ever flipped one of these rtr's with the weak turn lock on the canopy? Yea...it's coming off....but not now.
    -added deeded partial carbon fiber inlay to the canopy, front and rear
    -added deeds deduced a gps mount plate
    -upgraded the size of the wire on the 80a esc to 10 gauge. Has large bullets right at the esc to connect the larger wire to the smaller factory wire
    -ec5 connectors (I can change to whatever connectors you want except deans or smaller than ec5)
    -took apart the stock motor. Cleaned it out. Added high quality ceramic sealed bearings and made it where the motor can be disassembled
    -it has upgraded billet adjustable (with an allen) trim tabs. I made a tunnel that goes through the transom with a brass tube so you can stick an allen wrench through for adjustment.
    -x642 prop
    -billet antenna mount
    -split cooling system (this is controversial, so I will include new water line to convert back to stock)
    -factory spektrum radio and receiver.
    I'm sure I'm forgetting a few things. I do have some non boat stuff for sale on another forum, of it sells first....I'm going to keep this boat. I really like it and was very surprised how well it runs. I'll take $275 shipped complete, no batteries. If you don't want the transmitter and receiver, we can work something out. You also have a choice of motor. Stock 1500kv or stock 1800kv.



    Last edited by kfxguy; 07-11-2014, 11:14 AM.
    32" carbon rivercat single 4s 102mph, 27” mini Rivercat 92mph, kbb34 91mph, jessej micro cat(too fast) was
  • kfxguy
    Fast Electric Addict!
    • Oct 2013
    • 8746

    #2

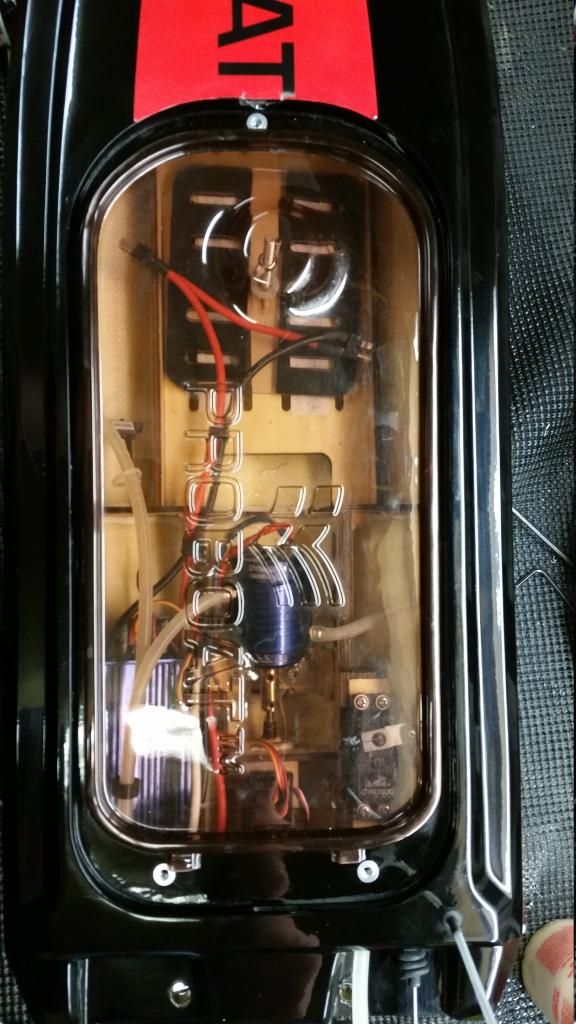

    More pics



    32" carbon rivercat single 4s 102mph, 27” mini Rivercat 92mph, kbb34 91mph, jessej micro cat(too fast) was

    Comment

    • kfxguy
      Fast Electric Addict!
      • Oct 2013
      • 8746

      #3

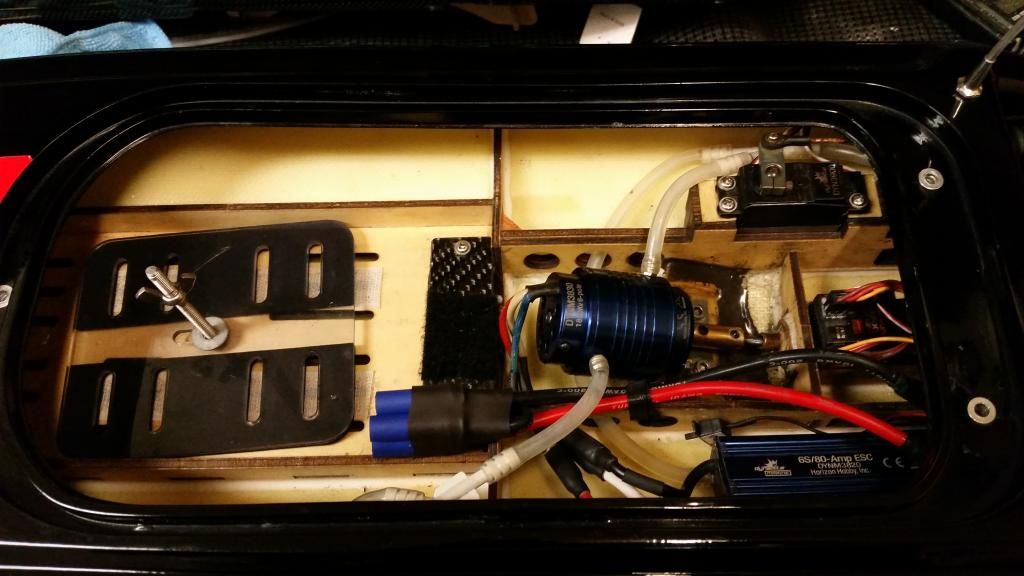

      Interior pics



      Last edited by kfxguy; 07-12-2014, 12:26 AM.
      32" carbon rivercat single 4s 102mph, 27” mini Rivercat 92mph, kbb34 91mph, jessej micro cat(too fast) was

      Comment

      • skeeler
        Senior Member
        • Jul 2007
        • 198

        #4
        I'll take it if the promised interior shots look good. Not sure which motor to choose. How much to include both?
        Revolt 30, River Jet, Southampton Tug, Outcast 6S BLX, 8ight-E, Ten-SCBE, 22 2.0.
        '09 Miata.
        Ibanez basses and guitars. Mapex drums, Zildjian cymbals.

        Comment

        • skeeler
          Senior Member
          • Jul 2007
          • 198

          #5
          Originally posted by kfxguy
          I can change to whatever connectors you want except deans or smaller than ec5
          Can you do Castle polarized 6.5-mm connectors on the ESC?
          Revolt 30, River Jet, Southampton Tug, Outcast 6S BLX, 8ight-E, Ten-SCBE, 22 2.0.
          '09 Miata.
          Ibanez basses and guitars. Mapex drums, Zildjian cymbals.

          Comment

          • kfxguy
            Fast Electric Addict!
            • Oct 2013
            • 8746

            #6
            Originally posted by skeeler
            Can you do Castle polarized 6.5-mm connectors on the ESC?
            Yes. The green ones? I can for a few bucks more. For both the motors I'd do it for $25 extra. I'll post interior pics later. I have this one before I re wired it.


            32" carbon rivercat single 4s 102mph, 27” mini Rivercat 92mph, kbb34 91mph, jessej micro cat(too fast) was

            Comment

            • Shane Lewis
              Senior Member
              • Apr 2014
              • 381

              #7
              Good looking boat in the water

              Comment

              • kfxguy
                Fast Electric Addict!
                • Oct 2013
                • 8746

                #8
                Originally posted by Shane Lewis
                Good looking boat in the water
                thanks! Very nice looking. i really hate to see it go but i really want to finish my fantasm. i did consider selling the fantasm and just not building it, but ive really been wanting one to complete my collection of that style hull.
                32" carbon rivercat single 4s 102mph, 27” mini Rivercat 92mph, kbb34 91mph, jessej micro cat(too fast) was

                Comment

                • skeeler
                  Senior Member
                  • Jul 2007
                  • 198

                  #9
                  Yep, the green ones. (I run those on all my high-current RC cars and boats.) I sent you a PM with my PayPal information.
                  Last edited by skeeler; 07-11-2014, 02:20 PM.
                  Revolt 30, River Jet, Southampton Tug, Outcast 6S BLX, 8ight-E, Ten-SCBE, 22 2.0.
                  '09 Miata.
                  Ibanez basses and guitars. Mapex drums, Zildjian cymbals.

                  Comment

                  • Vin-m
                    Senior Member
                    • May 2014
                    • 308

                    #10
                    if no one takes the 1800kv motor let me know a price just for motor if you want to sell it.thanks

                    Comment

                    • kfxguy
                      Fast Electric Addict!
                      • Oct 2013
                      • 8746

                      #11
                      Originally posted by Vin-m
                      if no one takes the 1800kv motor let me know a price just for motor if you want to sell it.thanks
                      I have a spare i wont be needing
                      32" carbon rivercat single 4s 102mph, 27” mini Rivercat 92mph, kbb34 91mph, jessej micro cat(too fast) was

                      Comment

                      • kfxguy
                        Fast Electric Addict!
                        • Oct 2013
                        • 8746

                        #12

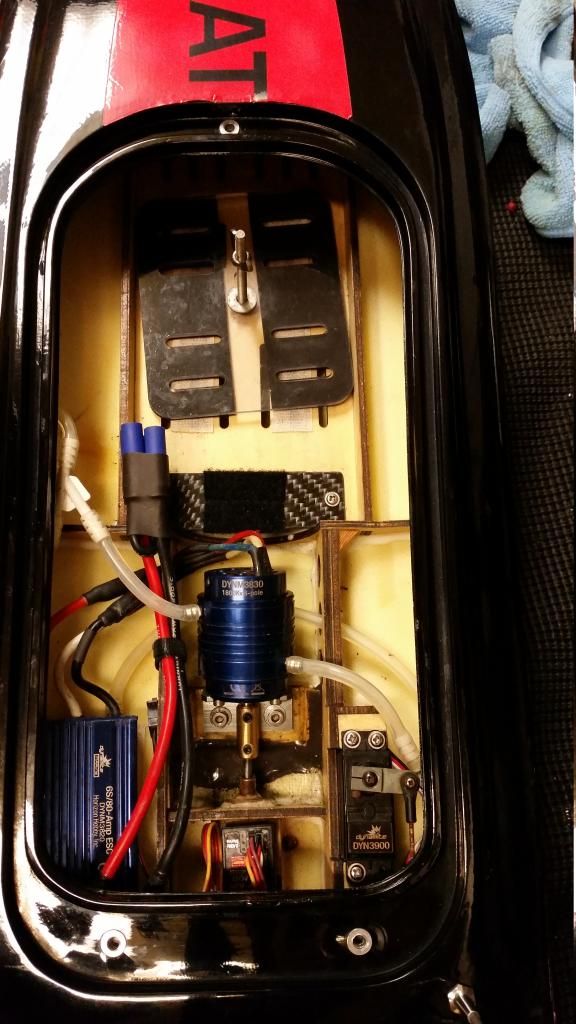

                        Interior pics added in post #3 and here's one more.

                        32" carbon rivercat single 4s 102mph, 27” mini Rivercat 92mph, kbb34 91mph, jessej micro cat(too fast) was

                        Comment

                        • kfxguy
                          Fast Electric Addict!
                          • Oct 2013
                          • 8746

                          #13
                          Sold!
